Redis Cluster 내부 서버 간 통신 할 때 사용하는 포트 1700X (17001, 17002 등등) 오픈하여

서로 통신 및 정상으로 돌아간 적이 있었다.

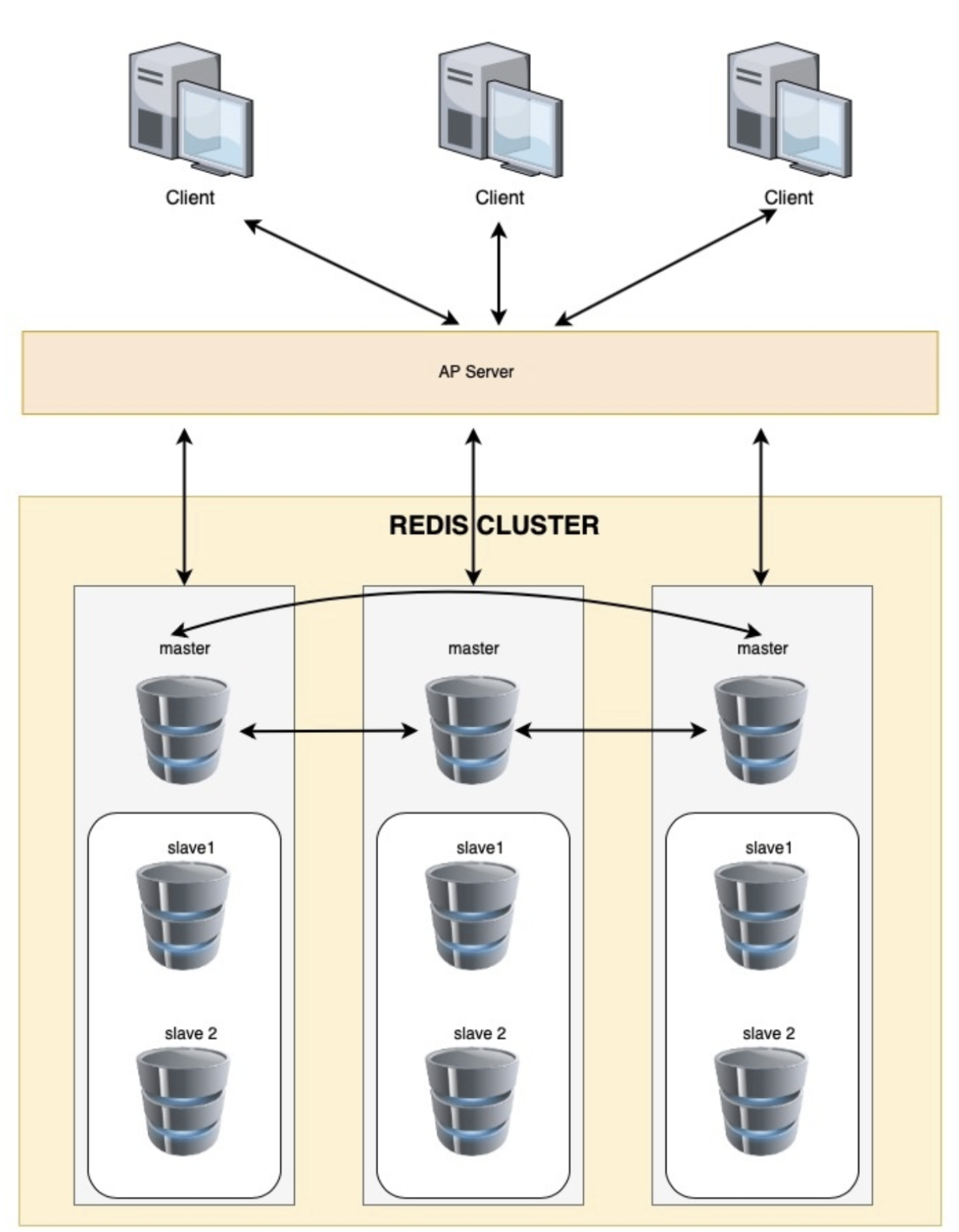

구성도

작업 순서

1. Redis 다운로드 및 설치

wget http://download.redis.io/releases/redis-5.0.5.tar.gz
gzip -d redis-5.0.5.tar.gz
tar xvf redis-5.0.5.tar
cd redis-5.0.5
redis-5.0.5]# make
mv redis-5.0.5 /usr/local/redis

2. Redis 유저 / 그룹 생성

-- redis 유저 / 그룹 생성 공통
groupadd redis
adduser -g redis redis

2-1 폴더 생성

mkdir -p /usr/local/redis/cluster/7000
mkdir -p /usr/local/redis/cluster/conf
cd /usr/local/redis/cluster/conf

3. config 파일 생성

vi redis.7000.conf

################################## INCLUDES ###################################
# include /path/to/local.conf
# include /path/to/other.conf

################################## MODULES #####################################
# loadmodule /path/to/my_module.so
# loadmodule /path/to/other_module.so

################################## NEkrORK #####################################
bind 1.1.1.1 127.0.0.1
protected-mode yes
port 7000
tcp-backlog 511
# unixsocket /tmp/redis.sock
# unixsocketperm 700
timeout 0
tcp-keepalive 300

################################# GENERAL #####################################
dir /usr/local/redis/cluster/7000
daemonize yes
supervised no
pidfile redis.pid
loglevel notice
logfile redis.log
# syslog-enabled no
# syslog-ident redis
# syslog-facility local0
# databases 16
always-show-logo yes

################################ SNAPSHOTTING  ################################
save ""
# save 900 1
# save 300 10
# save 60 10000
stop-writes-on-bgsave-error yes
rdbcompression yes
rdbchecksum yes
dbfilename dump.cluster.rdb

################################# REPLICATION #################################
#masterauth 비밀번호 # 설정 안함
replica-serve-stale-data yes
replica-read-only yes
repl-diskless-sync yes
repl-diskless-sync-delay 5
# repl-ping-replica-period 10
repl-timeout 60
repl-disable-tcp-nodelay no
# repl-backlog-size 1mb
# repl-backlog-ttl 3600
replica-priority 100
# min-replicas-to-write 3
# min-replicas-max-lag 10
# min-replicas-max-lag is set to 10.
# replica-announce-ip 5.5.5.5
# replica-announce-port 1234

################################## SECURITY ###################################
#requirepass 비밀번호 # 설정 안함
# rename-command CONFIG ""

################################### CLIENTS ####################################
# maxclients 10000

############################## MEMORY MANAGEMENT ################################
# maxmemory <bytes>
# maxmemory-policy noeviction
# maxmemory-samples 5
# replica-ignore-maxmemory yes

############################# LAZY FREEING ####################################
lazyfree-lazy-eviction no
lazyfree-lazy-expire no
lazyfree-lazy-server-del no
replica-lazy-flush no

############################## APPEND ONLY MODE ###############################
appendonly no
appendfilename "appendonly.aof"
# appendfsync always
appendfsync everysec
# appendfsync no
no-appendfsync-on-rewrite no
auto-aof-rewrite-percentage 100
auto-aof-rewrite-min-size 64mb
aof-load-truncated yes
aof-use-rdb-preamble yes

################################ LUA SCRIPTING  ###############################
lua-time-limit 5000

################################ REDIS CLUSTER  ###############################
cluster-enabled yes
cluster-config-file nodes.conf
cluster-node-timeout 5000
# cluster-replica-validity-factor 10
# cluster-migration-barrier 1
# cluster-require-full-coverage yes
# cluster-replica-no-failover no

########################## CLUSTER DOCKER/NAT support  ########################
# cluster-announce-ip 10.1.1.5
# cluster-announce-port 6379
# cluster-announce-bus-port 6380

################################## SLOW LOG ###################################
slowlog-log-slower-than 10000
slowlog-max-len 128

################################ LATENCY MONITOR ##############################
latency-monitor-threshold 0

############################# EVENT NOTIFICATION ##############################
notify-keyspace-events ""

############################### ADVANCED CONFIG ###############################
hash-max-ziplist-entries 512
hash-max-ziplist-value 64
list-max-ziplist-size -2
list-compress-depth 0
set-max-intset-entries 512
zset-max-ziplist-entries 128
zset-max-ziplist-value 64
hll-sparse-max-bytes 3000
stream-node-max-bytes 4096
stream-node-max-entries 100
activerehashing yes
client-output-buffer-limit normal 0 0 0
client-output-buffer-limit replica 256mb 64mb 60
client-output-buffer-limit pubsub 32mb 8mb 60
# client-query-buffer-limit 1gb
# proto-max-bulk-len 512mb
hz 10
dynamic-hz yes
aof-rewrite-incremental-fsync yes
rdb-save-incremental-fsync yes
# lfu-log-factor 10
# lfu-decay-time 1

########################### ACTIVE DEFRAGMENTATION #######################
# activedefrag yes
# active-defrag-ignore-bytes 100mb
# active-defrag-threshold-lower 10
# active-defrag-threshold-upper 100
# active-defrag-cycle-min 5
# active-defrag-cycle-max 75
# active-defrag-max-scan-fields 1000

4. Redis 실행

- 경로이동

cd /usr/local/redis/cluster

# 실행 스크립트 생성
vi redis_start.sh
#!/bin/bash

/usr/local/redis/src/redis-server /usr/local/redis/cluster/conf/redis.7000.conf &

chmod +x redis_start.sh
chown -R redis:redis /usr/local/redis

5. 클러스터 생성

# 클러스터 생성
# 1.1.1.2:7000를 1.1.1.1:7000의 슬레이브로 지정
./redis-cli --cluster create 1.1.1.1:7000 1.1.2.1:7000 1.1.3.1:7000
./redis-cli --cluster add-node 1.1.1.2:7000 1.1.1.1:7000 --cluster-slave
./redis-cli --cluster add-node 1.1.2.2:7000 1.1.2.1.213:7000 --cluster-slave
./redis-cli --cluster add-node 1.1.3.2:7000 1.1.3.1:7000 --cluster-slave

5-1 유저 스위칭 후 수행

# redis 유저로 변경하여 실행
sudo su redis
./redis_start.sh

6. 클러스터 확인

cd /usr/local/redis/src
./redis-cli --cluster check 1.1.1.1:7000
1.1.1.1:7000 (c6643cb1...) -> 0 keys | 5461 slots | 1 slaves.
1.1.2.1:7000 (1c9669af...) -> 0 keys | 5461 slots | 1 slaves.
1.1.3.1:7000 (f20cc469...) -> 0 keys | 5462 slots | 1 slaves.
[OK] 0 keys in 3 masters.
0.00 keys per slot on average.
>>> Performing Cluster Check (using node xxxx:7000)
M: c6643cb1d0d1ab962b501a2264e6d9ee9083a39b xxxxx:7000
   slots:[0-5460] (5461 slots) master
   1 additional replica(s)
S: 6fe1fa03f42054304913f5214478be2254116736 xxxxx:7000
   slots: (0 slots) slave
   replicates f20cc469580f924916132db20b4b655bec216e0d
S: 390e2fe2dd4945f0498cbcf505c2d8a0c5c8b566 xxxxx:7000
   slots: (0 slots) slave
   replicates c6643cb1d0d1ab962b501a2264e6d9ee9083a39b
S: b56ba5e6b439c30e1aa12859690dd94d511e6d77 xxxx:7000
   slots: (0 slots) slave
   replicates 1c9669af8a75ffdd9a82e23be6bc78db1c38027f
M: 1c9669af8a75ffdd9a82e23be6bc78db1c38027f xxxxx:7000
   slots:[10923-16383] (5461 slots) master
   1 additional replica(s)
M: f20cc469580f924916132db20b4b655bec216e0d xxxxx:7000
   slots:[5461-10922] (5462 slots) master
   1 additional replica(s)
[OK] All nodes agree about slots configuration.
>>> Check for open slots...
>>> Check slots coverage...
[OK] All 16384 slots covered.

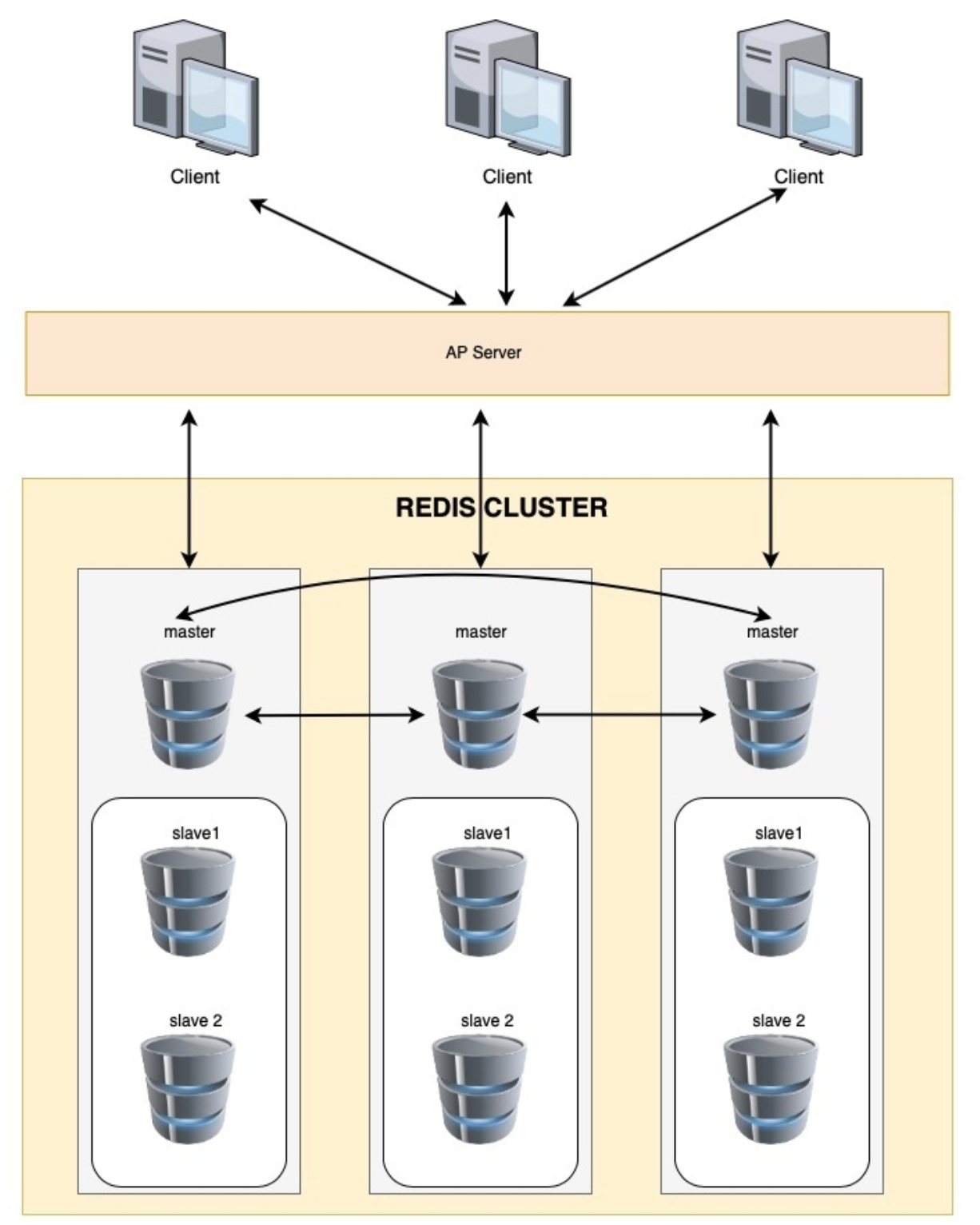

구성도

THP 비활성화

/etc/rc.local 에 아래 내용 추가

echo never > /sys/kernel/mm/transparent_hugepage/enabled

Redis 다운로드 및 설치

Redis 다운로드

cd /usr/local
wget http://download.redis.io/releases/redis-4.0.14.tar.gz
tar xzf redis-4.0.14.tar.gz
mv redis-4.0.14 redis
cd /usr/local/redis/src
make

디렉토리 생성

cd /usr/local/redis/
mkdir -p /usr/local/redis/cluster/7000
mkdir -p /usr/local/redis/cluster/conf
touch /usr/local/redis/cluster/redis_start.sh
chmod 700 /usr/local/redis/cluster/redis_start.sh

실행파일 생성

vi /usr/local/redis/cluster/redis_start.sh

#!/bin/sh
/usr/local/redis/src/redis-server /usr/local/redis/cluster/conf/redis.7000.conf

conf 파일 생성

conf 파일 생성

vi  /usr/local/redis/cluster/conf/redis.7000.conf

masterauth , requirepass에는 패스워드 입력

################################## NETWORK #####################################
#bind에는 접속 가능한 서버의 IP주소를 입력합니다.
bind 11.1.1.1 127.0.0.1
protected-mode yes
port 7000
tcp-backlog 511
timeout 0
tcp-keepalive 300

################################# GENERAL #####################################
dir /usr/local/redis/cluster/7000
daemonize yes
supervised no
pidfile redis.pid
loglevel notice
logfile redis.log
always-show-logo yes

################################ SNAPSHOTTING  ################################
save ""
stop-writes-on-bgsave-error yes
rdbcompression yes
rdbchecksum yes
dbfilename dump.cluster.rdb

################################# REPLICATION #################################
masterauth ***********
slave-serve-stale-data yes
slave-read-only yes
repl-diskless-sync yes
repl-diskless-sync-delay 5
repl-timeout 60
repl-disable-tcp-nodelay no
slave-priority 100


################################## SECURITY ###################################
requirepass *********

############################# LAZY FREEING ####################################
lazyfree-lazy-eviction no
lazyfree-lazy-expire no
lazyfree-lazy-server-del no
slave-lazy-flush no

############################## APPEND ONLY MODE ###############################
appendonly no
appendfilename "appendonly.aof"
appendfsync everysec
no-appendfsync-on-rewrite no
auto-aof-rewrite-percentage 100
auto-aof-rewrite-min-size 64mb
aof-load-truncated yes
aof-use-rdb-preamble no

################################ LUA SCRIPTING  ###############################
lua-time-limit 5000

################################ REDIS CLUSTER  ###############################
cluster-enabled yes
cluster-config-file nodes.conf
cluster-node-timeout 5000

################################## SLOW LOG ###################################
slowlog-log-slower-than 10000
slowlog-max-len 128

################################ LATENCY MONITOR ##############################
latency-monitor-threshold 0

############################# EVENT NOTIFICATION ##############################
notify-keyspace-events ""

############################### ADVANCED CONFIG ###############################
hash-max-ziplist-entries 512
hash-max-ziplist-value 64
list-max-ziplist-size -2
list-compress-depth 0
set-max-intset-entries 512
zset-max-ziplist-entries 128
zset-max-ziplist-value 64
hll-sparse-max-bytes 3000
activerehashing yes
client-output-buffer-limit normal 0 0 0
client-output-buffer-limit slave 256mb 64mb 60
client-output-buffer-limit pubsub 32mb 8mb 60
hz 10
aof-rewrite-incremental-fsync yes

redis 사용자 및 그룹 생성

groupadd redis

useradd -g redis redis

chown -R redis:redis /usr/local/redis

redis 기동 확인

redis 시작

su - redis

/usr/local/redis/cluster/redis_start.sh

기동 확인

ps -ef | grep redis

redis cluster 구성

cluster 구성은 전체 서버가 아닌 한대만 설치해도 된다

cluster 구성용 redis-trib-pass 파일 다운로드

cd /usr/local/redis/src

wget https://raw.githubusercontent.com/seekasia/redis/master/src/redis-trib-pass.rb

redis-trib-pass.rb 첫번째 행 ruby2.1 => ruby 수정
vi redis-trib-pass.rb

chmod 700 redis-trib-pass.rb

ruby를 다운로드

cd /usr/local/src

wget https://cache.ruby-lang.org/pub/ruby/2.5/ruby-2.5.1.tar.gz

tar xvf ruby-2.5.1.tar.gz

ruby 컴파일

yum install -y bzip2 gcc openssl-devel readline-devel zlib-devel

cd ruby-2.5.1/

./configure

make

make install

ruby --version

gem install redis

마스터 서버 cluster 설정

*redis cluster 구성시 host name 이 아닌 Ip Address를 이용한다.

/usr/local/redis/src/redis-trib-pass.rb create --auth password 1.1.1.1:7000 1.1.1.2:7000 1.1.1.3:7000

cluster 확인 (마스터 ID 확인)

/usr/local/redis/src/redis-cli -p 7000 -a password cluster nodes

d6c9d17ba96137d13d0217a7e62ea7e7250a090e 1.1.1.1:7000@17000 myself,master - 0 0 1 connected 0-5460
5ac01a2c3936ef788fe63f8e9467156734b07aae 1.1.1.2:7000@17000 master - 0 1563850868038 2 connected 5461-10922
64908665fb8d8f966c5b0b3c82b60c7858db6d6e 1.1.1.3:7000@17000 master - 0 1563850868037 3 connected 10923-16383

* 첫번째 키가 마스터 키

slave 추가

#/usr/local/redis/src/redis-trib.rb add-node --slave --master-id <마스터ID>  --auth 비밀번호 <슬레이브IP:port> <현재실행서버IP:port>

예:

Cluster 1 master slave 설정

/usr/local/redis/src/redis-trib-pass.rb add-node --slave --master-id d6c9d17ba96137d13d0217a7e62ea7e7250a090e --auth password 1.1.1.2:7000 1.1.1.1:7000

/usr/local/redis/src/redis-trib-pass.rb add-node --slave --master-id d6c9d17ba96137d13d0217a7e62ea7e7250a090e --auth password 1.1.1.3:7000 1.1.1.1:7000

Cluster 2 master slave 설정

/usr/local/redis/src/redis-trib-pass.rb add-node --slave --master-id 5ac01a2c3936ef788fe63f8e9467156734b07aae --auth password 1.1.1.4:7000 1.1.1.1:7000

/usr/local/redis/src/redis-trib-pass.rb add-node --slave --master-id 5ac01a2c3936ef788fe63f8e9467156734b07aae --auth password 1.1.1.5:7000 1.1.1.1:7000

Cluster 3 master slave 설정

/usr/local/redis/src/redis-trib-pass.rb add-node --slave --master-id 64908665fb8d8f966c5b0b3c82b60c7858db6d6e --auth password 1.1.1.6:7000 1.1.1.1:7000

/usr/local/redis/src/redis-trib-pass.rb add-node --slave --master-id 64908665fb8d8f966c5b0b3c82b60c7858db6d6e --auth password 1.1.1.7:7000 1.1.1.1:7000

CentOS 7에서 redis 6 설치

redis6에서는 C11을 서 포트 하는 compiler가 필요

gcc에서는 4.9이후부터 서포트 한다

gcc version확인

gcc --version

scl을 이용하고 기본 directory를 변경하지 않고 compile한다

sudo yum install centos-release-scl
sudo yum install devtoolset-7-gcc*

scl enable devtoolset-7 bash
which gcc
gcc --version

이전 complie실패했을 때에는 clean

make distclean

redis source를 compile

cd /usr/local/redis/src
make

rocky linux 8.4에서 설치

groupadd redis
useradd -g redis redis



dnf module list redis

redis6을 defaul로 해

dnf module enable redis:6 -y

redis6을 설치

dnf install -y redis

default가 redis5이 되어 있는 경우에는 reset하고 처음부터 다시

dnf module reset redis

기동

systemctl enable --now redis

상태 확인

systemctl status redis

conf파일 위치

/etc/redis.conf

port변경

Could not create server TCP listening socket 127.0.0.1:7000: bind: Permission denied

vi /etc/selinux/config
의 enforced를 disabled로 변경

auth설정
/etc/redis.conf의 다음 항목을 변경

masterauth
requirepass

127.0.0.1:7000> info memory
# Memory
used_memory:83524718304
used_memory_human:77.79G
used_memory_rss:87905263616
used_memory_peak:88738920736
used_memory_peak_human:82.64G
used_memory_lua:36864
mem_fragmentation_ratio:1.05
mem_allocator:jemalloc-3.6.0
